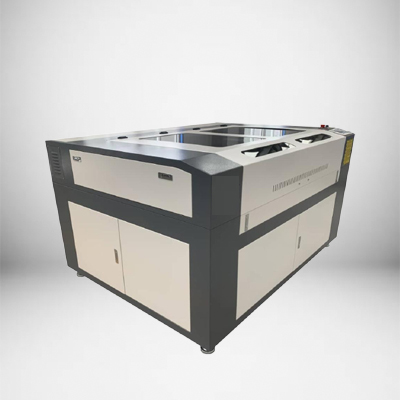

ML1390 laser engraving machine is the most hot-selling model accepted by our customers. Co2 laser cutters has large working area, compact nesting, convenient storage materials.
The knife-shape aluminium heavy strip work of the platform can avoid defective products caused by reflection of backstop while cutting acrylic & wood materials. If change into honeycomb working table, Co2 laser cutters can used to engrave and cut cloth, fabric, carpet, shoes, etc.
- We provide best laser cutting machines in the market
Co2 Laser Engraving And Cutting
Application
- Available materials: the Co2 laser cutters are widely applied in acrylic, organic glass, wood, MDF, textile, fabric, cloth, leather, paper, EVA materials, PVC plastic, crystal, bamboo, plexiglass, seal, rubber plate, marble, granite, Gum, Ceramics, etc. nonmetal materials.
- Application Industry: the Co2 laser cutters are widely applied in advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
Main Feature
- Professional Working Table: Honeycomb or Strip work table of the laser cutter for you to choose, use imported stable aluminium material, can meet the needs of diversified laser procession.
- Taiwan Made Ball Screw Rod: The motorized up and down table adopt Taiwan “Double-win” brand high precision ball screw rod and high accuracy linear running guide rail, can improve the precision and accuracy of the laser cutter.
- Red Light Pointer Function: As laser light is invisible, and the red light pointer of the pvc laser cutter can realize the exact position of laser beam.
- Special Front and back running-through design 30-50mm height, Co2 laser cutters can make a unique door for the limitless engraved materials come through from front into back side, easy to put material through.
- Ladder-Shape Drawer Design: Easily collect and getting the cutting object.
- High quality of chiller unit for better performance and long life of laser tube.
- Laser Beam Stop when Opening Machine Cover: We design a special function to stop the laser beam come out when operator open the laser cutter machine’s cover. So that ensure operator won’t be hurt by laser beam, safe for operator. Other company don’t have such design, so it will hurt operator sometime when using it.
- We Do Strict Testing for Each Laser Tube: We will test every laser tube before using them, in order to make sure the performance of laser tube and it has nice laser facular.
Technical Parameters
| Working Area | 900x 600, 1300×900, 2500x1300mm Co2 Laser Cutters |
| Laser Power | 60w / 80w / 100w / 130w / 150w / 180w |
| Laser Type | Hermetic and Detached Co2 Laser Tube |
| Engraving Speed | 0-60000mm/s |
| Cutting Speed | 0-10000mm/s |
| Cutting Thickness | 0-25mm acrylic (Others Determined by Materials) |
| Repeat Location Accuracy | +/-0.0125mm |
| Driving Mode | Stepper Motor |
| Position System | Red dot Laser Pointer |
| Interface | USB port transfer |
| Voltage | AC220v/50hz or 110v/60hz |
| Machine Power | 900w |
| Controlling System | Professional Control System |
| Support Graphics Mode | BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc. |
| Cooling Mode | Water Cooling (with Protection Function) |
| Auxiliary Devices | Exhaust Fan and Exhaust Pipe |
| Cutting Platform | Professional Thickening Strip or Honeycomb Work Table |
| Power Control Mode | Laser Energy Combining Movement Control System |
| Software | Professional Laser Cutting Software |
| Operating Temperature | 0-45C |
| Operating Humidity | 5-95% |
| Packing | Wooden Box |
